Performance and Scalability

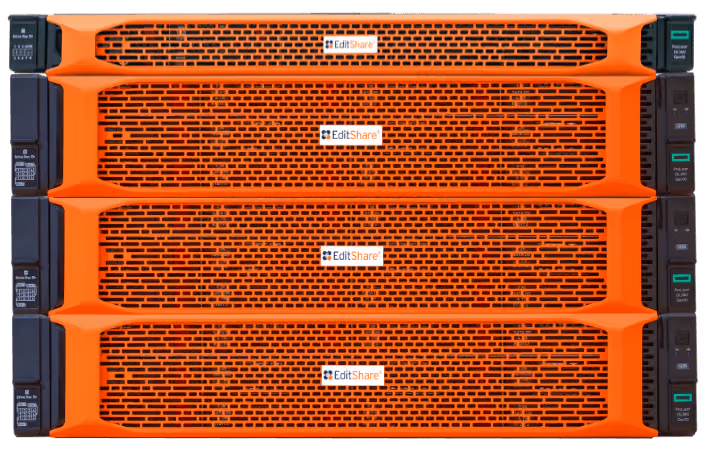

EFS 450
A powerful blend of performance and scalability, designed for high-demand media production environments. EFS 450 can scale from terabytes to petabytes, ensuring your storage grows with your needs while maintaining optimal performance across all levels of production.
Overview
Built for large-scale workgroups
EFS 450 is designed to meet the demanding bandwidth, storage capacity, fault-tolerance, and management requirements of large-scale workgroups and media operations. A 3-node, 192TB entry-level cluster provides over 2.3 GB/s of bandwidth, and its native XOR protection tolerates the loss of an entire storage node. Bandwidth and capacity expand linearly by simply plugging in additional storage nodes to reach unlimited capacity.
Seamless Scalability
One namespace, however big you grow.
No matter how big you make your EFS 450 system, you will always have just one logical namespace, so you never have to split files between multiple physical volumes because they don't all fit on one. While being expanded, an EFS 450 can continue to support production while background processes distribute data to newly-added nodes. Thanks to its RAM-based EFS Metadata servers, the EFS 450 ensures that reads and writes are processed quickly, and our unique SwiftRead feature manages resource contention to prevent dropped frames on ingest and playout operations.
Metadata Controller
No single point of failure
The metadata controller functions as a traffic management system, controlling data distribution across the parallel file system and preventing single points of failure. A secondary controller can be added for redundancy in mission-critical environments.
Key Features
Distributed data protection
Distributed file system and multiple levels of hardware redundancy ensure the highest level of data protection.
Multiple RAID levels
Multiple levels of RAID that increase both reliability and performance.
High Availability options
Increase uptime with 'no single point of failure' infrastructure.
Choice of file protection
Choice of file protection mechanisms to suit content value and budget.
Grow to 5PB and beyond
Bandwidth and capacity expand linearly by simply plugging in additional storage nodes.
Fault-tolerant metadata
A second metadata controller adds fault tolerance, with advanced IPMI-fencing and PDU-fencing mechanisms.
Wide-scale project sharing
EFS 450 permits wide-scale simultaneous use of media with project sharing.
EFS 450 Specifications
- Entry configuration
- 3-node, 192TB entry-level cluster delivering over 2.3 GB/s of bandwidth
- System drives
- Two hot-swappable 480GB SSDs for system configuration and metadata management
- Networking
- Multiple network cards available
- Power & cooling
- Redundant power supplies and cooling
- Form factor
- 2U rack-mountable chassis
Transform Your Storage Capabilities
Learn more about EFS 450's scalability, performance, and unmatched reliability.
