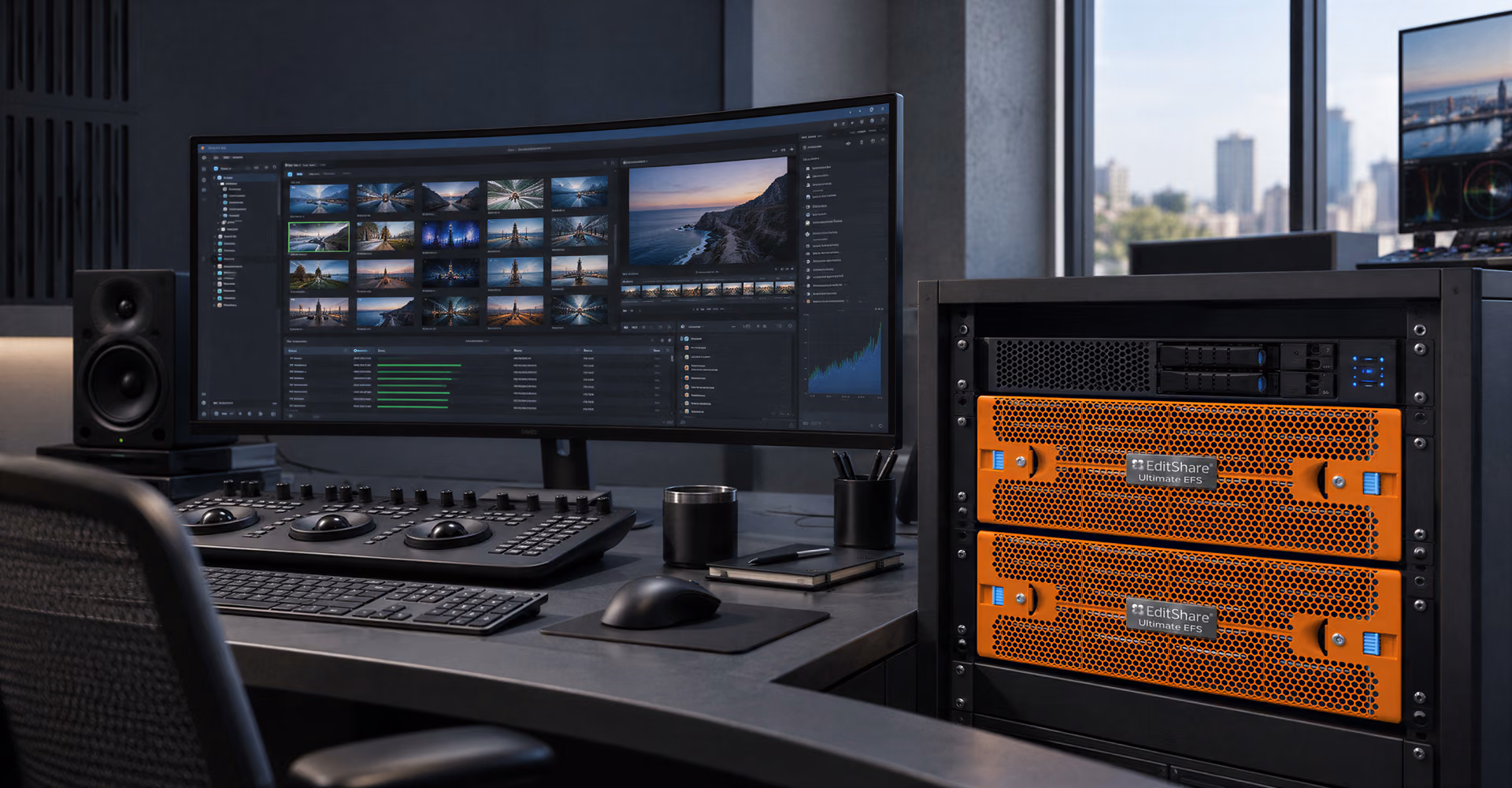

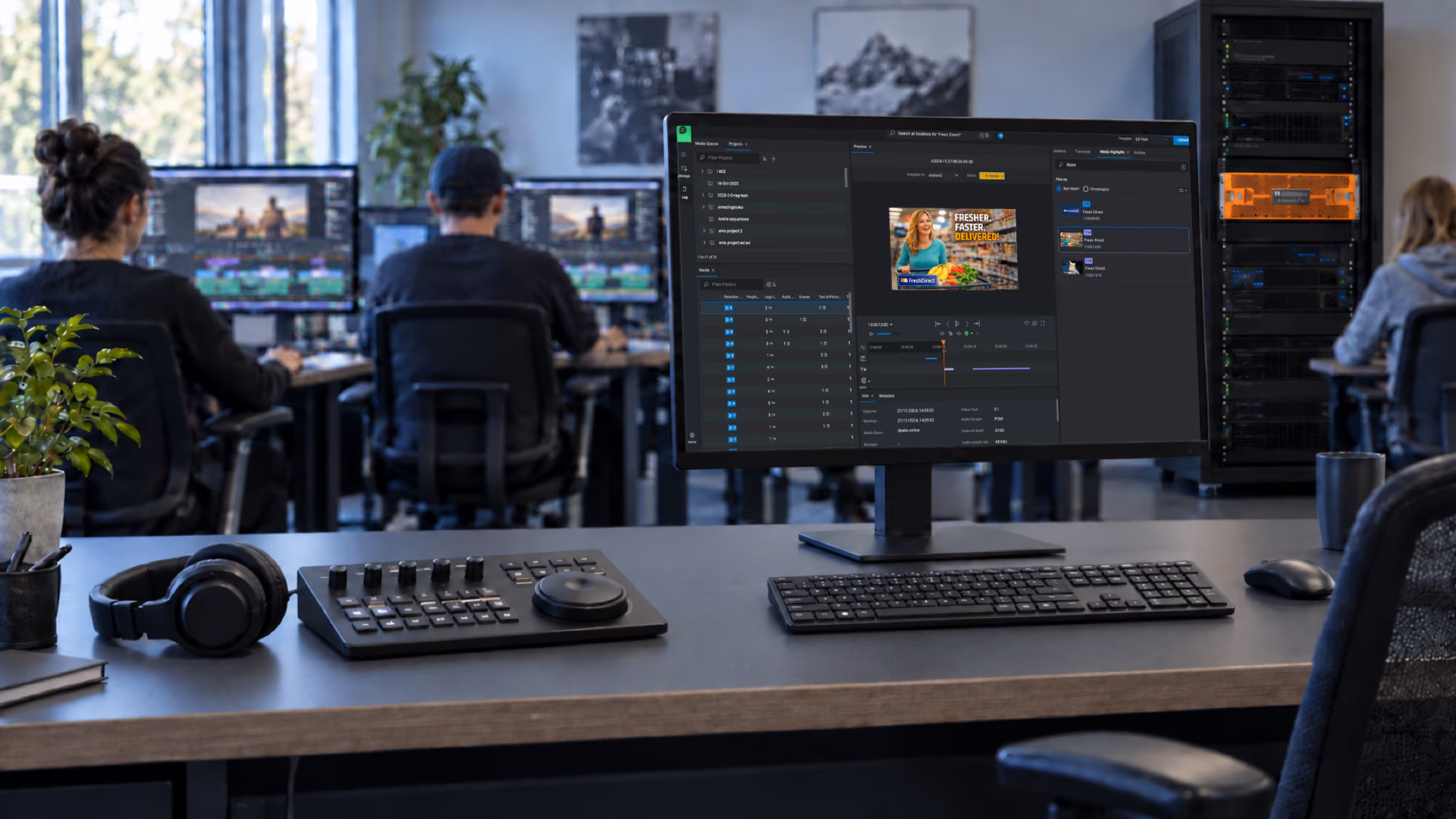

Advanced Collaboration for Creative Workflows. Supports simultaneous media access and project sharing across multiple teams, with integration for Avid Media Composer, Adobe Premiere Pro, and DaVinci Resolve. Optional FLOW Asset Management adds workflow automation, remote browsing, proxy editing, and AI-powered metadata tagging.
Purpose-built for Mission-Critical Production

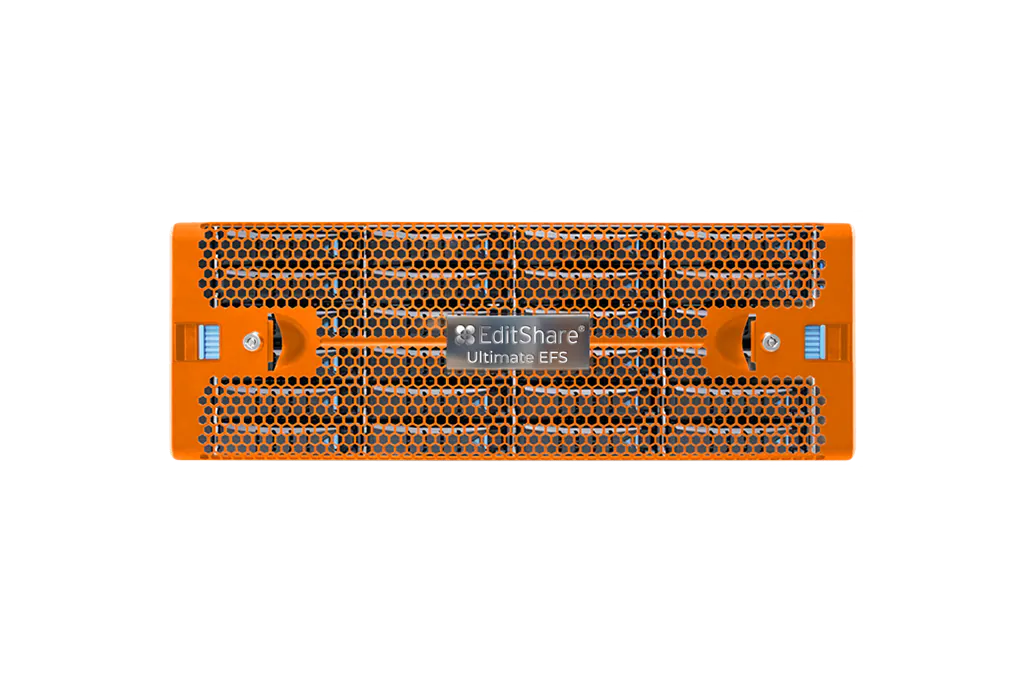

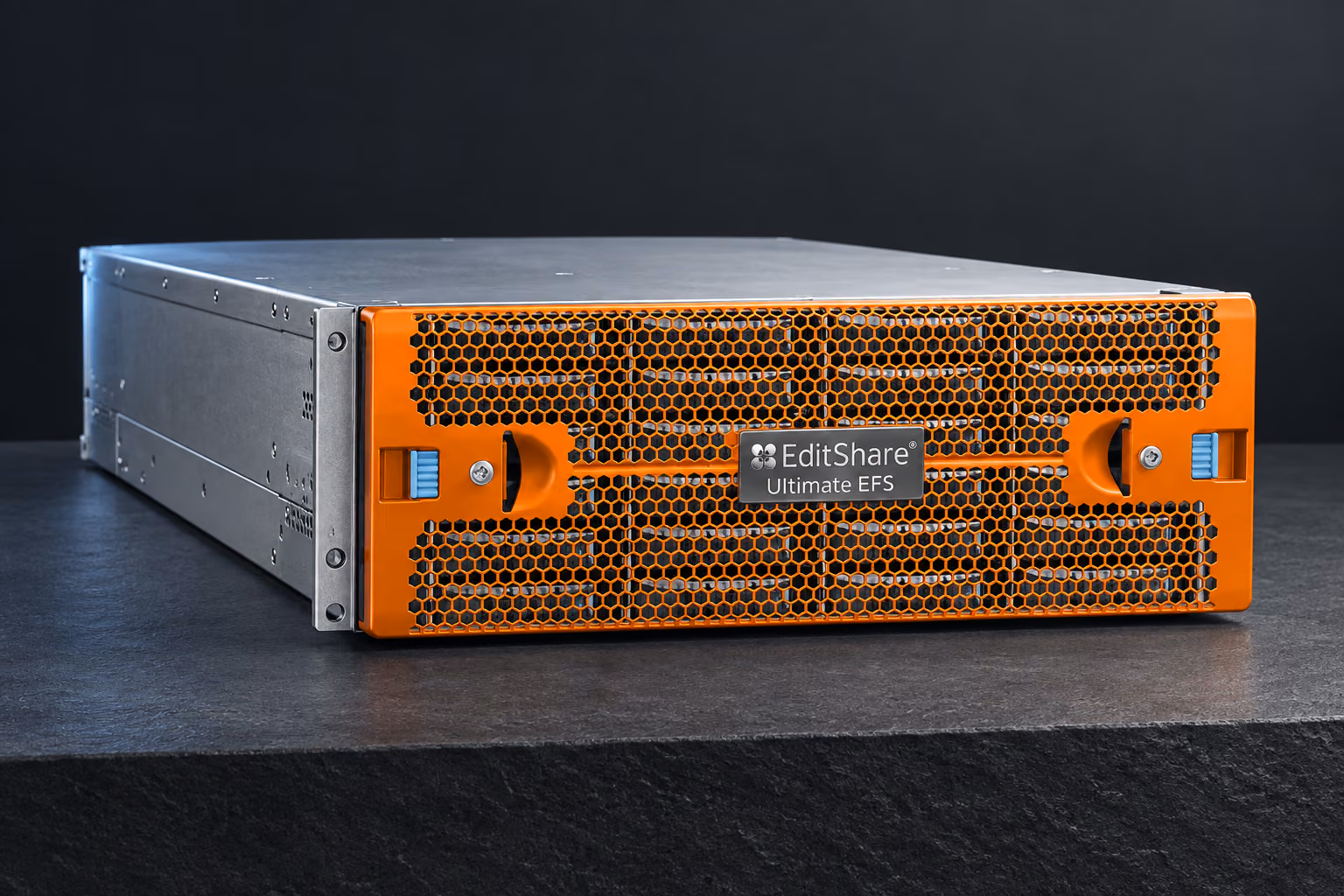

EFS 410
Representing the pinnacle of media storage technology, the EFS 410 is built to support mission-critical media production with high performance, scalability, and fault tolerance.
Workflow
From Ingest To Delivery
Fault-Tolerant Design for Unmatched Reliability. Redundant power supplies, hot-swappable fans, RAID-6 protection, and mirrored, hot-swappable drives keep data secure and accessible, including through an entire node failure.

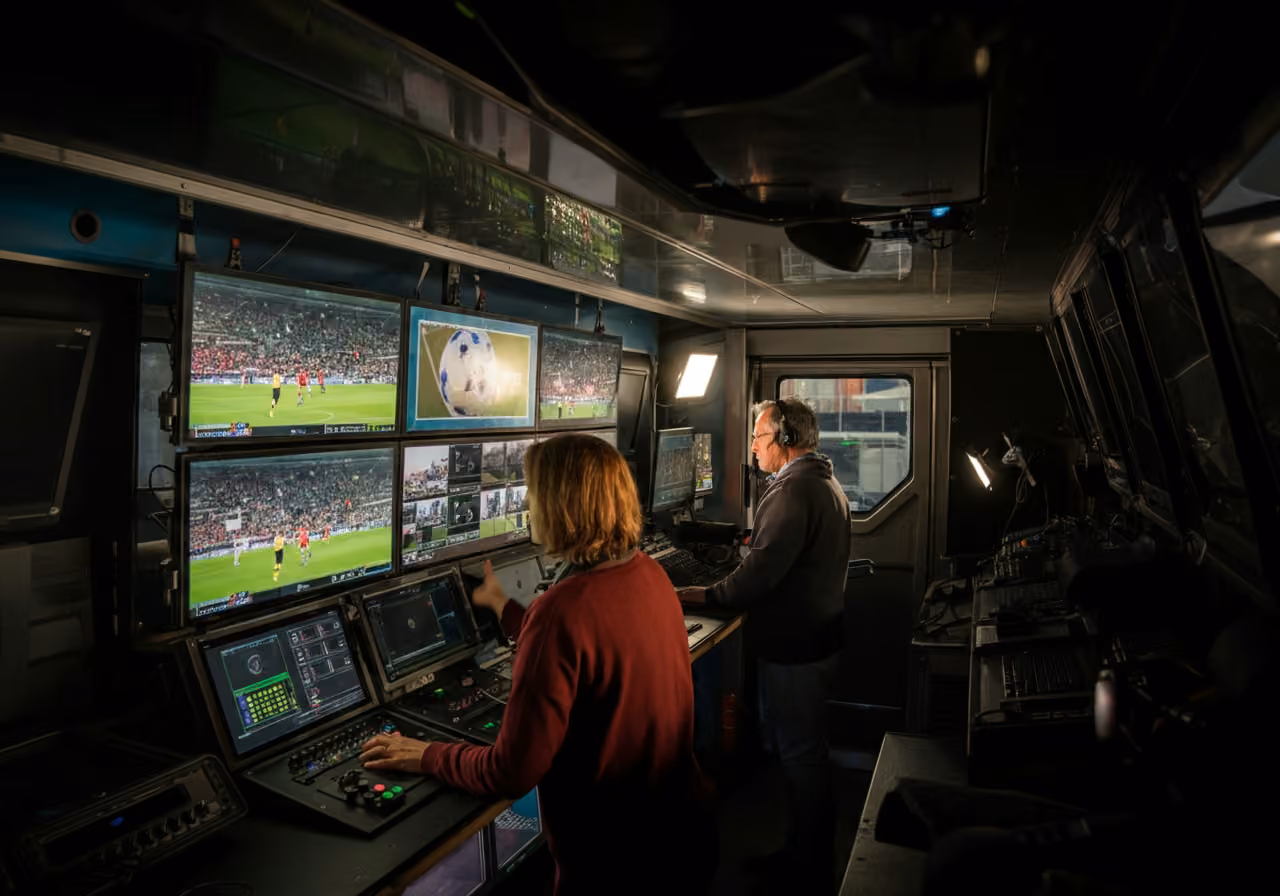

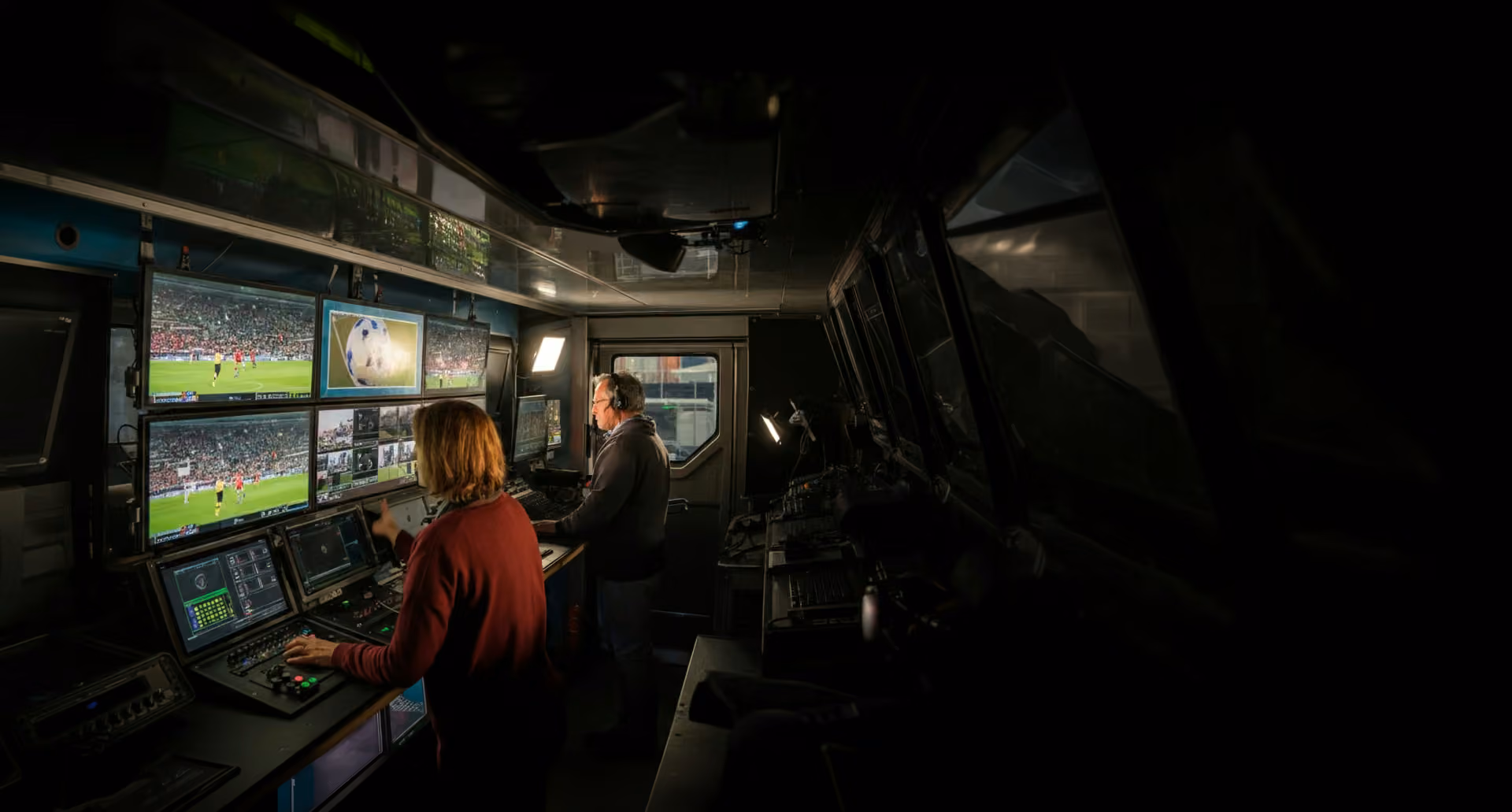

High-Availability for Broadcast and Playout Applications. Approved by leading vendors, with dual Metadata Controllers ensuring no single point of failure — a reliable backbone for global broadcast and telco operations.
Now Available in a Single Node Configuration. Run FLOW services with storage and metadata on a single node, no extra hardware required, then scale by adding production nodes, metadata controllers, or storage nodes as demand grows.
Scalable and Modular Expansion
Scalable and Modular Expansion
EFS 410 is designed with limitless growth in mind. Enterprises can expand storage as needed, scaling up to 15PB and beyond. Each additional storage node easily integrates into the EFS single namespace, eliminating the management challenges of other forms of media storage. As you add more nodes to the cluster, the system's throughput and performance increase at the same rate, so it keeps up smoothly with your growing storage needs.
Consistent High-Bandwidth Performance
Consistent High-Bandwidth Performance
EFS 410 guarantees uninterrupted high performance even during peak usage. Its unique metadata management system minimizes latency by storing metadata in fast memory, preventing delays for multiple asset requests. EditShare Swift Read technology enables real-time access to media even if a storage node is temporarily busy, making it ideal for handling high-resolution media, including playout of UHD material.
Looking beyond another NEXIS refresh?
Compare EditShare EFS and Avid NEXIS across performance, workflow flexibility, media management, remote collaboration, and long-term ownership costs.
See the comparison
Key Features
Large-scale collaboration
Supports large-scale simultaneous access with project sharing for top creative tools.
Single-namespace expansion
Easily expands to over 15PB while maintaining a single namespace for streamlined management.
Low-latency responsiveness
Swift Read technology and memory-stored metadata reduce latency and maximize responsiveness.
Redundant and journaled
Redundant components, RAID 6 protection, and journaling ensure security and reliability for critical data.
High availability
High Availability configurations and playout support make it ideal for broadcasters and telcos.
FLOW Asset Management
Optional workflow automation, remote browsing, proxy editing, and AI-powered metadata tagging.

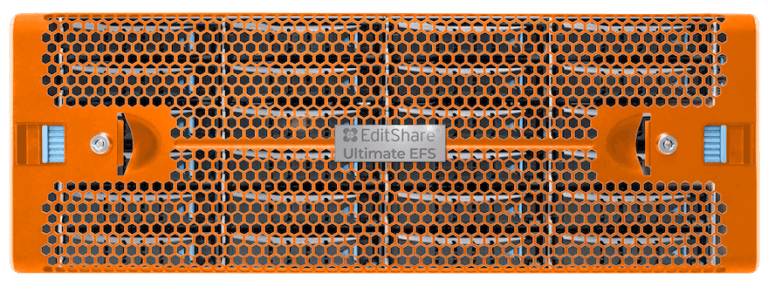

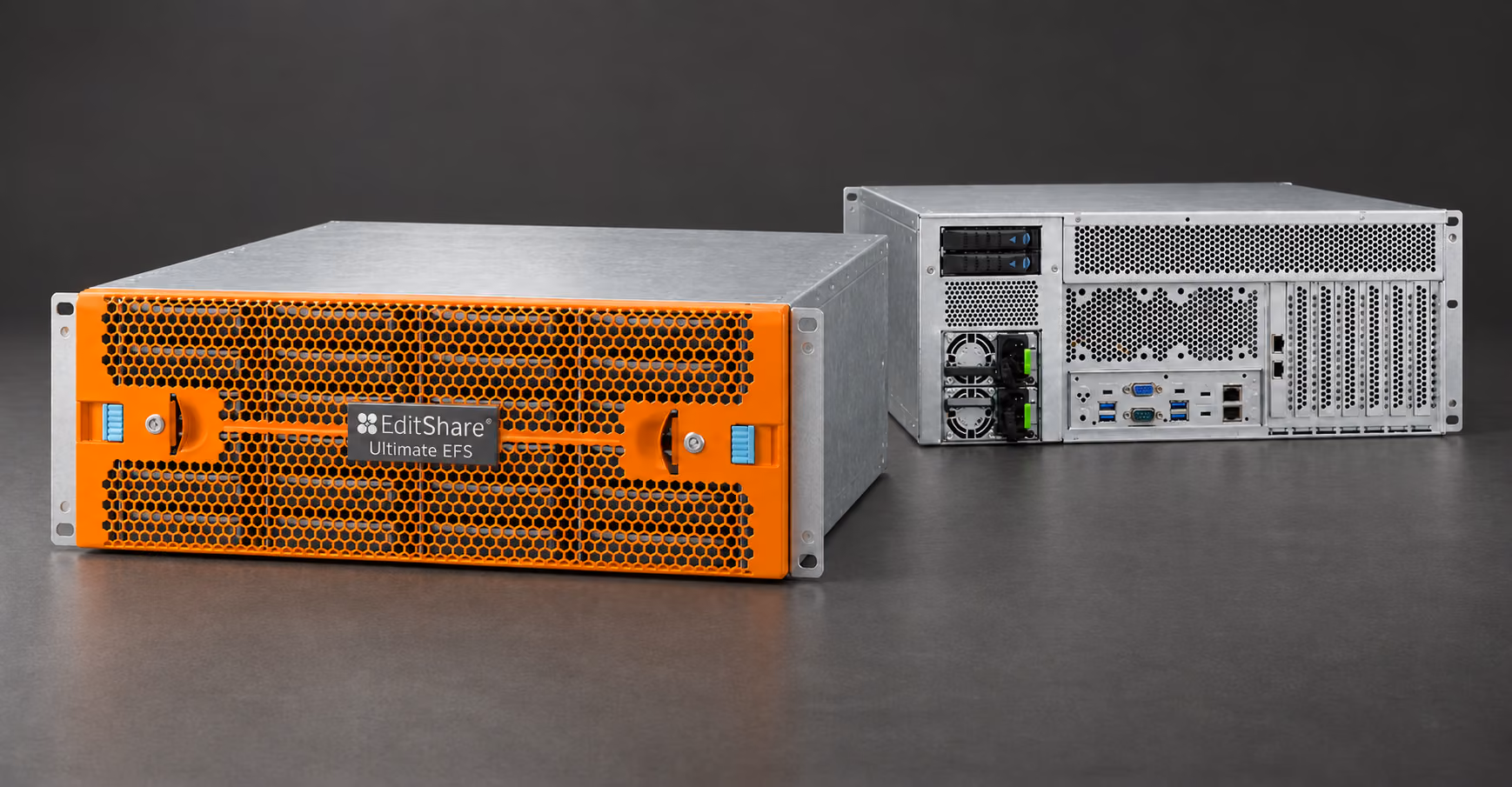

EFS 410 Specifications
- Form factor
- 4U rack-mountable server, scalable 3-node configuration (MDC sold separately)
- Processor & memory
- Multi-core CPU · 64GB DDR5 ECC RAM
- Networking
- Dual 10GbE network ports
- RAID
- Hardware RAID controller
- Drives
- 24 enterprise-grade drives in capacities of 6TB, 10TB, 16TB, 20TB, 22TB, or 24TB
- OS drives
- Mirrored 480GB SSD OS drives, hot-swappable and rear-accessible
- Power & cooling
- Hot-swappable power supplies and fans
